MoveJoints#

This command makes the robot simultaneously move all its joints to the target joint set, as fast as possible but subject to the limits set by the commands SetJointVel and SetJointVelLimit. All joints start and stop moving at the same time, so there is generally only one joint that moves at the joint velocity indirectly specified in SetJointVel and SetJointVelLimit. The robot takes a linear path in the joint space, but nonlinear in the Cartesian space. Therefore, the TCP trajectory is not easily predictable (Figure 8). Finally, with MoveJoints, the robot can cross singularities without any problem.

Syntax#

MoveJoints(θ₁,θ₂,d₃,θ₄)

Arguments#

the target position of each joint, in degrees (for the revolute joints) and in mm (for the linear joint).

The default ranges for the robot joints are given in Technical specifications of the robot’s user manual. Note that these ranges can be further limited with the command SetJointLimits. The target joints position must be within the allowable joint limits or else the command will not be executed.

(a) MoveJoints — Figure 8 An example showing the difference between a path that is linear in joint space (often referred to as a point-to-point motion) and one that is linear in Cartesian space (the TCP follows a line).#

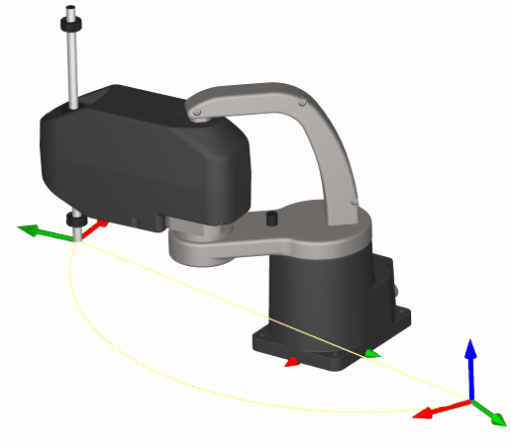

(b) MoveLin — Figure 8 An example showing the difference between a path that is linear in joint space (often referred to as a point-to-point motion) and one that is linear in Cartesian space (the TCP follows a line).#

Usage restrictions#

This command is added to the robot’s motion queue and can only be executed when the robot is ready for motion, not in an error state and when no safety signal conditions are present. Otherwise, the robot will report one of the following:

[1005][The robot is not activated.]

[1011][The robot is already in error.]

Cyclic protocols#

In cyclic protocols, the MoveJoints command is represented by MotionCommandID 1. See Section 4.2 for more details.
