7. Examples#

Here is an example of a very simple program that makes a pick-and-place motion:

// Set reference frames
SetTrf(0, 0, 0, 0)
SetWrf(0, 0, 0, 0)

// Set motion parameters
SetCartLinVel(5000)
SetJointVel(100)
SetBlending(10)

// Fix robot configuration
SetConf(-1)

// Move to pick position
MovePose(120, -152.4, 50, 0)
MoveLin(120, -152.4, 24.6, 0)
MoveLin(120, -152.4, 50, 0)
MoveLin(120, 152.4, 50, 0)

// Move to drop position
MoveLin(120, 152.4, 24.6, 0)
MoveLin(120, 152.4, 50, 0)
MovePose(120, -152.4, 50, 0)

// For faster cycle times, use the command MoveJump

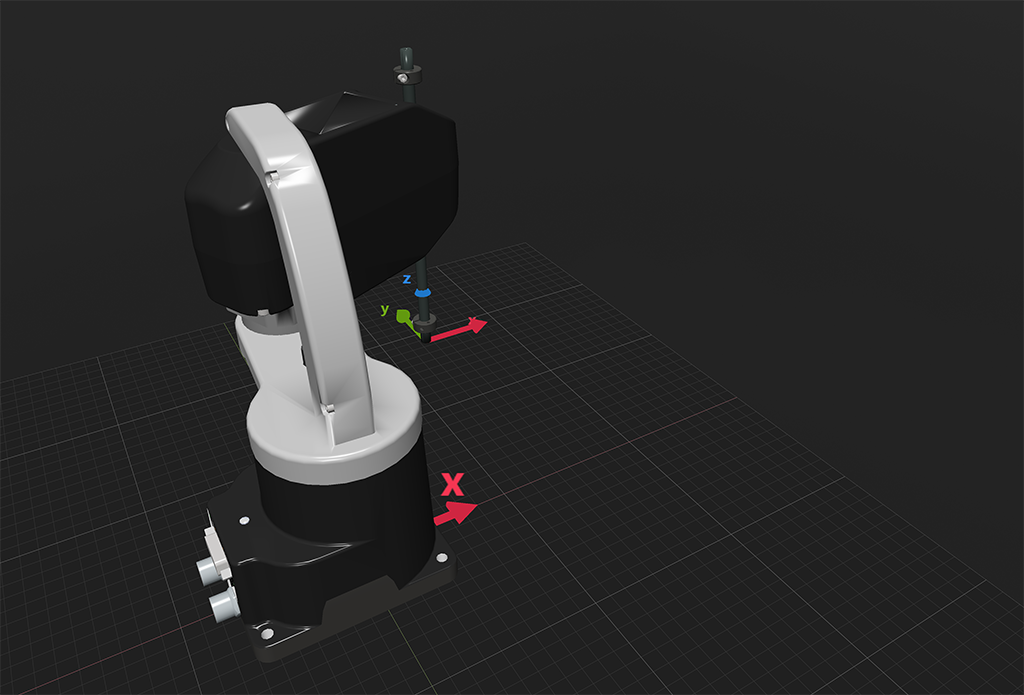

Figure 36 shows the result of four of the motion commands.

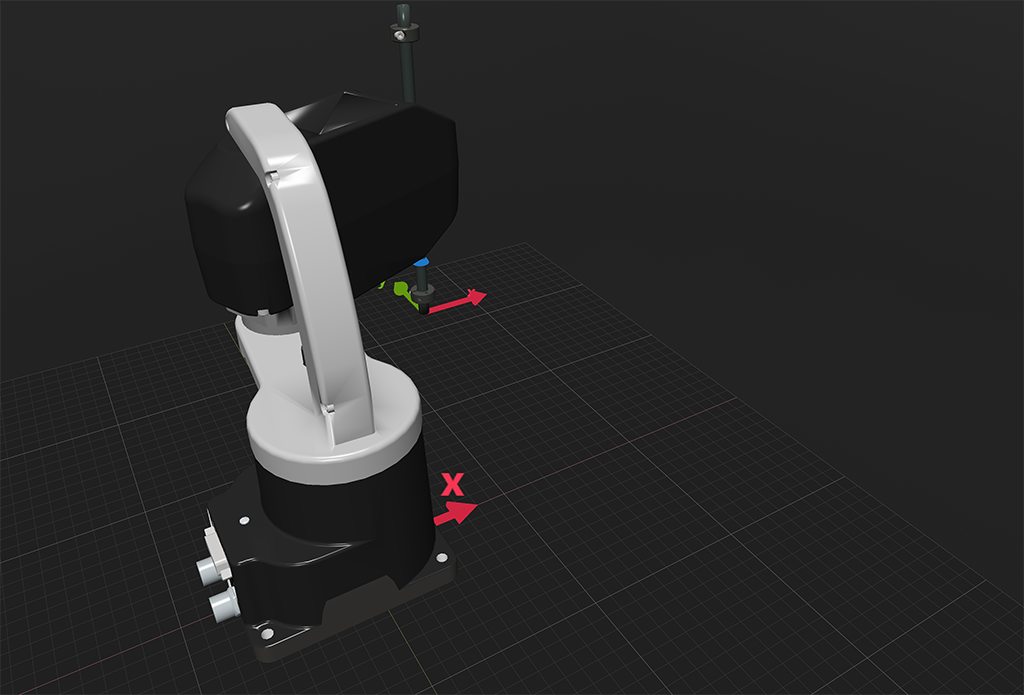

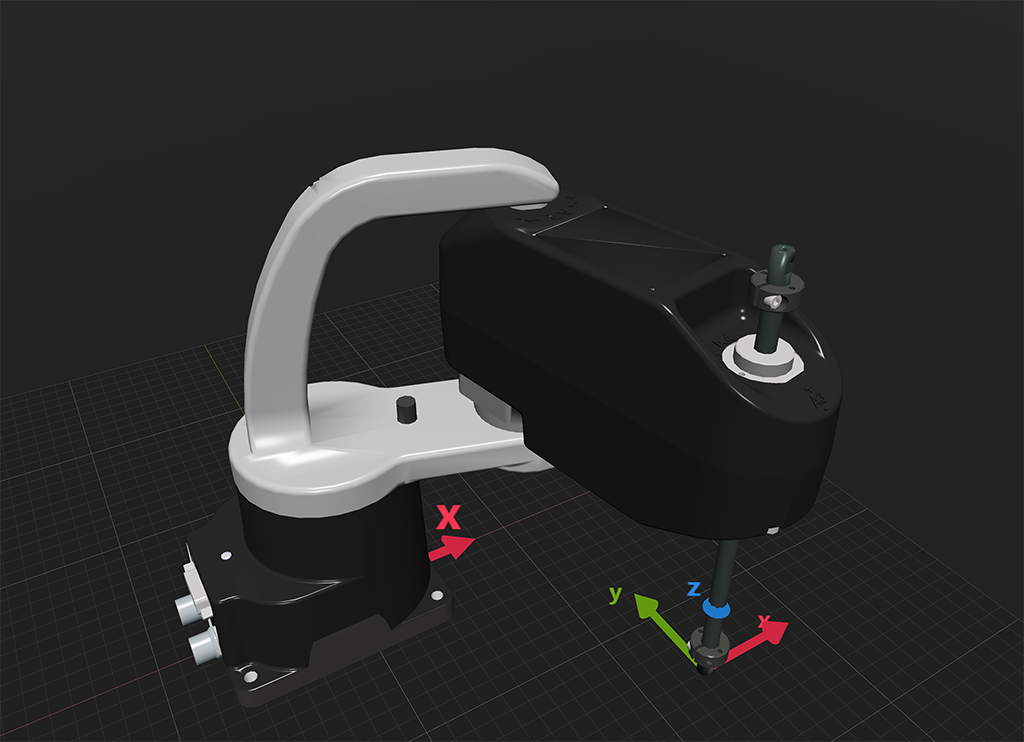

(a) MovePose(120, -152.4, 50, 0) — Figure 36 The four separate robot positions that define the motion sequence#

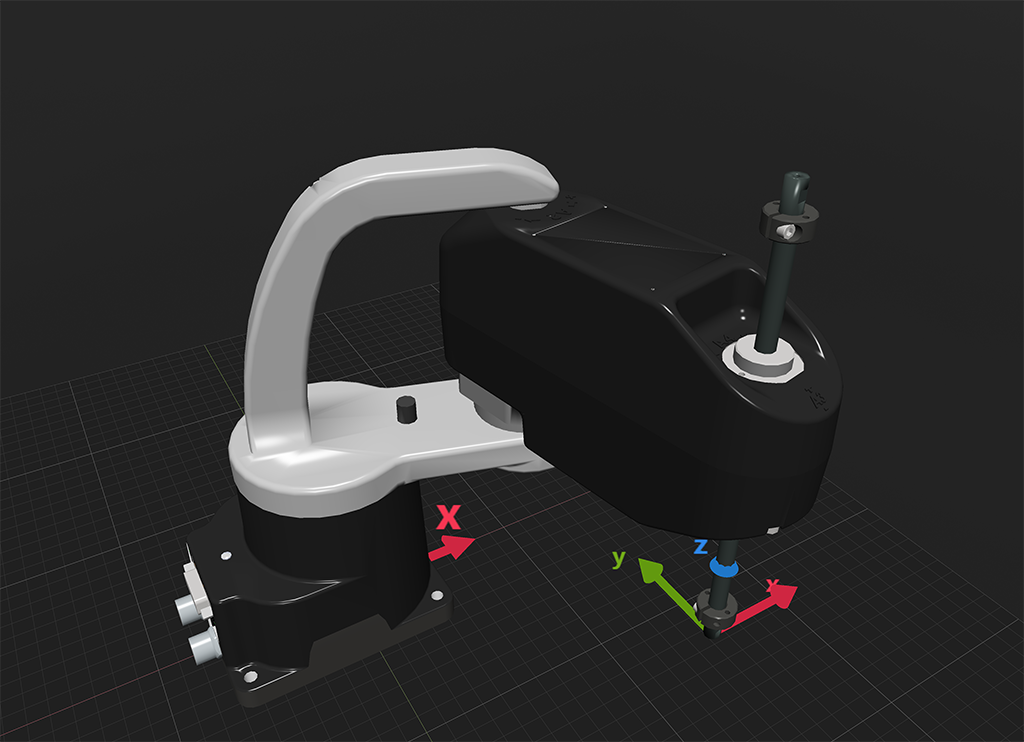

(b) MoveLin(120, -152.4, 24.6, 0) — Figure 36 The four separate robot positions that define the motion sequence#
